Logic Diagram Of Full Adder - Design of Full Adder using Half Adder circuit is also shown.Single-bit Full Adder circuit and Multi-bit addition using Full Adder is also shown. Before going into this subject, it is very important to know about Boolean Logic and Logic Gates .. As a first example of useful combinational logic, let’s build a device that can add two binary digits together. We can quickly calculate what the answers should be: 0 + 0 = 0 0 + 1 = 1 1 + 0 = 1 1 + 1 = 10 2. So we well need two inputs (a and b) and two outputs.. Full Adder Logic Gate Circuit Diagram Template --You can edit this template and create your own diagram.Creately diagrams can be exported and added to Word, PPT.

The 8-bit adder adds the numbers digit by digit, as can be seen in the schematic diagram below. In this example, the integers 170 and 51 represent input a and b, respectively, and the resulting output is the sum 221. The first adder does not have any carry‐in, and so it is represented by a half adder (HA) instead of a full adder (FA).. This file contains additional information such as Exif metadata which may have been added by the digital camera, scanner, or software program used to create or digitize it.. 5-1 FAST AND LS TTL DATA 4-BIT BINARY FULL ADDER WITH FAST CARRY The SN54/74LS283 is a high-speed 4-Bit Binary Full Adder with internal carry lookahead..

1-bit Full Adder 1 The expressions for the sum and carry lead to the following unified implementation: in in in in A B C A B C Sum A B C A B C which is the ripple carry logic. However, if we substitute we can show: cbc ac ab. Now the simple full-adder logic circuits can be combined to allow bigger binary numbers to be added together. This picture shows a four bit adder, in fact, due to the way the carry bit ‘ripples’ down, this is known as a ripple carry adder.. buffer [9]. This full adder is energy efficient and outperforms several standard full adders without trading off driving capability and reliability. The new full-adder circuit successfully works in a low voltage with excellent signal integrity and driving capability [5]. Fig.3: Schematic Diagram of.

Apr 16, 2013  · Compare the logic diagram for the full subtractor with that for the full adder, note that the only difference is that one of the inputs to the two AND gates is negated. Four full subtractors can be combined as we did with the full adders to produce a 4-bit subtractor.. The VHDL Code for full-adder circuit adds three one-bit binary numbers (A B Cin) and outputs two one-bit binary numbers, a sum (S) and a carry (Cout). Truth Table describes the functionality of full adder. sum(S) output is High when odd number of inputs are High.. A ripple carry adder is simply several full adders connected in a series so that the carry must propagate through every full adder before the addition is complete. Ripple carry adders require the least amount of hardware of all adders, but they are the slowest..

Binary full adder 1-bit full adder Computes sum, carry-out Carry-in allows cascaded Ripple-carry adder timing diagram Critical delay Carry propagation 1111 + 0001 = 10000 is worst case A0 B0 Cin S0 @2 A1 B1 C1 @3 S1 @4 A2 B2 Basic logic gates Schematic diagrams Timing diagrams Minterm and maxterm expansions (canonical, minimized). FIRST BLOCK DIAGRAM – FULL-ADDER A full-adder is an adder that takes 3 inputs (A, B, carry-in) and has 2 outputs (sum, carry-out). In case you are wondering, there is such a thing as a half-adder..

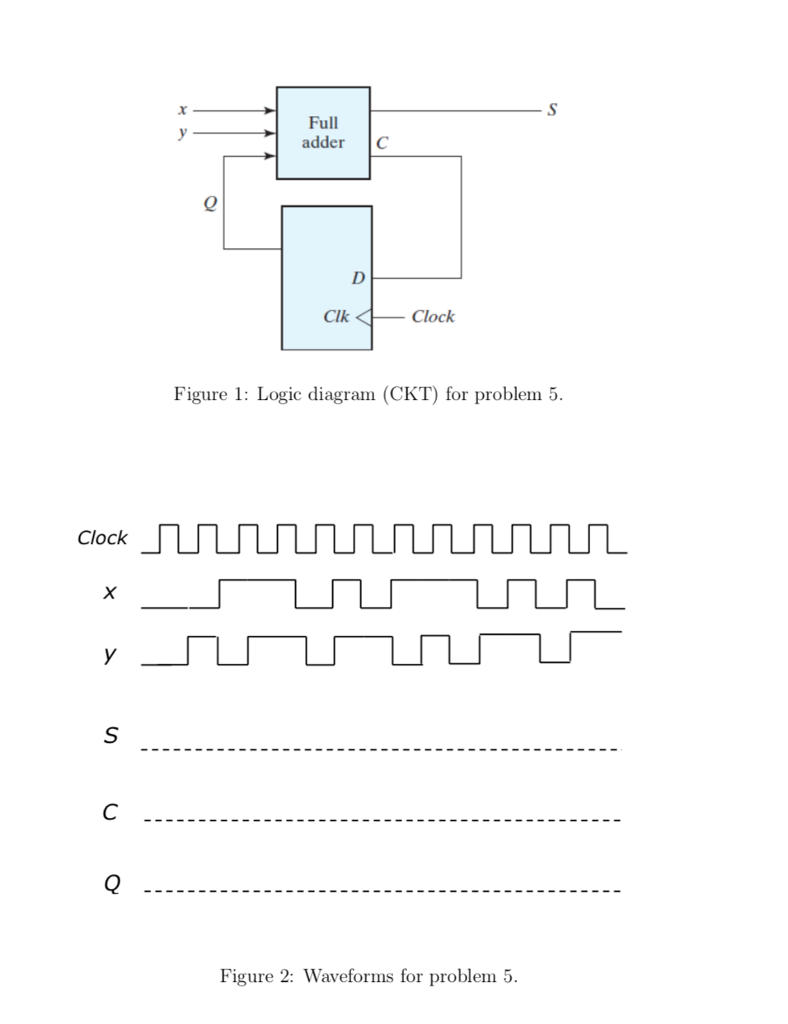

Solved: Full Adder C Q| ClkClock Figure 1: Logic Diagram ... Full adder C Q| ClkClock Figure 1: Logic diagram (CKT) for problem 5 ...
File:Full-adder logic diagram.svg - Wikimedia Commons Open ...
a) Full-adder circuit designs using five-input MV. (b) QCA layout ... (a) Full-adder circuit designs using five-input MV. (b) QCA layout for 1-bit full adder. (c) Simulated output of full adder using QCADesigner.
CMOS-based pass-transistor XOR gate and a full adder.(a) Circuit ... CMOS-based pass-transistor XOR gate and a full adder.(a) Circuit design (upper) and truth table (lower) for an XOR gate. (b) Output voltage levels for all ...
Half & Full Adder | Half & Full Subtractor – AHIRLABS FULL ADDER USING NOR. Full_Adder_Nor Full_Adder_Nor
